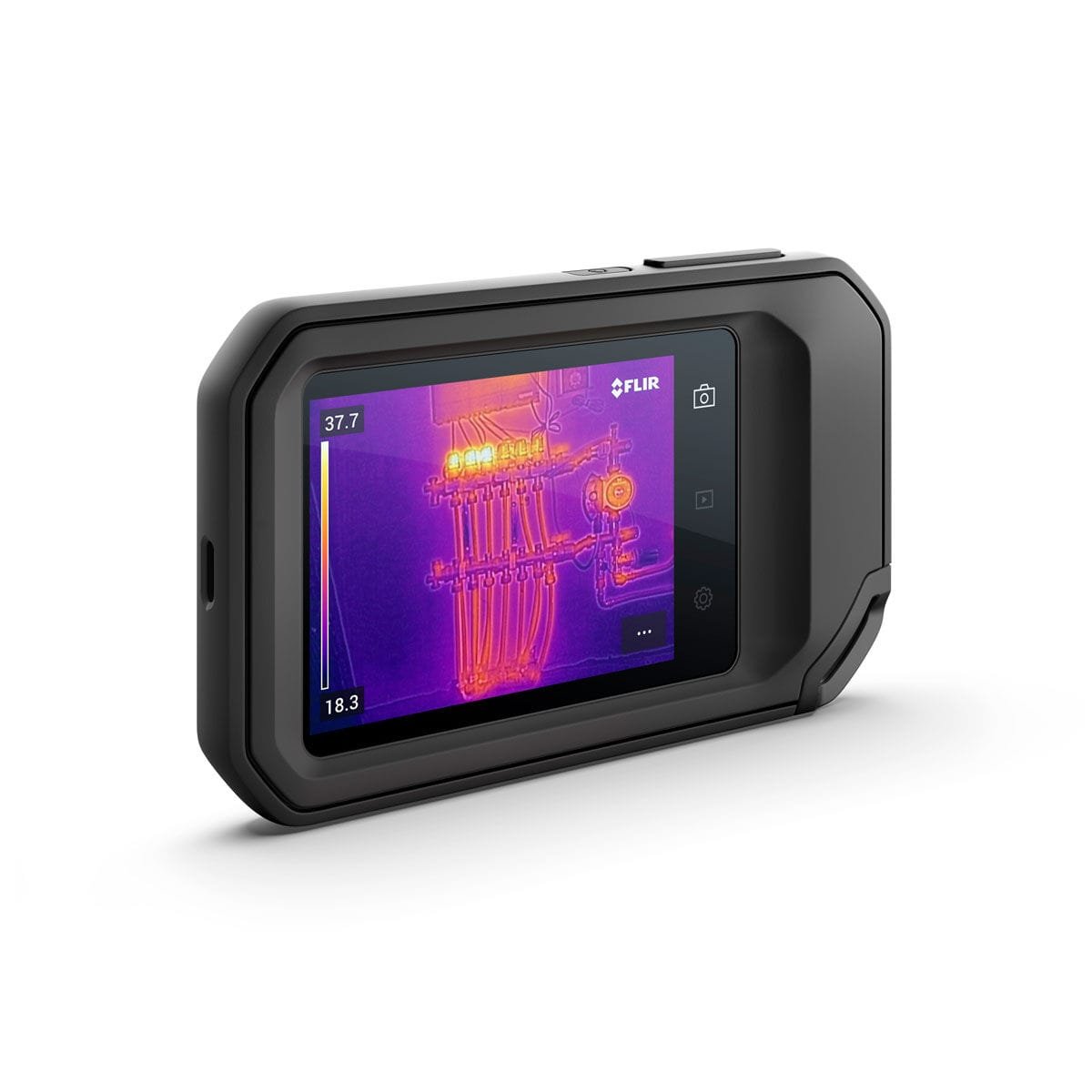

C5 Compact Thermal Camera

Product Overview
A compact 3 in 1 tool including a thermal camera, visual inspection camera, and LED floodlight, featuring a 160 x 120 IR sensor and MSX® technology, which uses scene details from the built-in visual camera and embosses them onto the full thermal image. Cloud connectivity with an automatic transfer, storage, backup, and share functionality reduces time and effort.
Product Features

Identify and troubleshoot problems faster with the 160 x 120 true thermal imager and 5-megapixel visual camera
Save time on manual thermal adjustments using 1-Touch Level/Span, which auto-adjusts the level and span in an area of interest with one touch
Instantly recognize the location of a temperature issue with MSX® (Multi-Spectral Dynamic Imaging), which uses scene details from the built-in visual camera and embosses them onto the full thermal image
Upload directly to FLIR Ignite to conveniently store, organize, and back-up images
Identify and describe potential issues by adding annotations to images
Share findings easily and securely by sending a password-protected link via email
Provide customers professional reports with images that document problems and repairs using preferred software, such as FLIR Thermal Studio
IP54 enclosure provides a high level of protection against dust and water
Designed to withstand a 6.6′ (2 m) drop
Carry the compact camera in your pocket or stow easily in a crowded tool bag
See into dark, difficult-to-reach areas with the help of the bright LED flashlight

Specs

–

Product Type:

Thermal Camera

Image Resolution:

160 x 120 (19,200 pixels)

Temperature Range (F):

-4°F to 752°F

Thermal Sensitivity :

< 0.10°C

Display:

LCD

Field of View:

54º x 42º

Minimum Focus Distance:

3.94″ (Thermal)
11.8″ (MSX)

Image Frequency:

8.7 Hz

Spectral Range:

8 to 14 microns

Features:

Auto Orientation
Touchscreen

Display Size:

3.5″

Power Source:

Battery

Battery Type:

USB Rechargeable Li-Po

Batteries Included:

1
